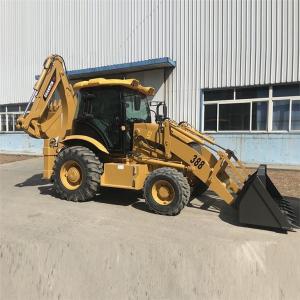

Backhoe loader digger is designed for agriculture,forestry,normal projects,landscaping and Public facilities construction.Due to the small size and versatility,our tractor backhoe is very convenient,high efficiency and time-saving.There is a full-view cabin between the loading bucket and the rear excavator which is easy for the operator to always observe the surrounding conditions and operate the machine with a better visual field.There is a movable seat in the middle of the cabin and after finishing the loading tasks,by pushing a bar under the seat,the operator can easily turn the seat to the control gears of rear digger to continue to accomplish the digging work.The integrated control panel makes the operation more easily,even for someone who have never learned how to operate a backhoe loader digger.Here is the specification:
| Overall dimension | Operating Weight | 8200KG |
| Overall dimension(L×W×H) | 6050×2465×3100mm | |
| Wheel base | 2280mm | |
| Wheel tread | 1785mm | |
| Ground Clearance | 300mm | |
| Performance | Loader bucket capacity | 1.0m³ |
| Loader breakout force | 47KN | |
| Loader lifting capacity | 2500KG | |
| Loader dumping height | 2760mm | |
| Loader dumping reach | 900mm | |
| Loader digging depth | 52mm | |
| Backhoe bucket capacity | 0.3m³ | |
| Backhoe bucket digging force | 50KN | |
| Backhoe swing angle | 180° | |
| Backhoe dumping height | 3795mm | |
| Backhoe max digging depth | 4085mm | |
| Max. traction force | 60KN | |
| Engine | Model | Yuchai YC4A105Z-T20 |
| Type | Turbocharging four-stroke | |
| Cylinder-inner diameter*stroke | 4-108×132 | |
| Rated power | 75KW/100HP | |
| Rated speed | 2200r/min | |
| Min. Fuel consumption | 230g/kw.h | |
| Max.torque | 400N.m | |
| Displacement | 4.8L | |
| Steering system | Type | Hydraulic Steering |
| Diverter model | BZZ5-250 | |
| Pump delivery | 63ml/r | |
| Steering angle | ±36° | |
| Min. turning radius | 6581mm | |
| Driving axle | Model | WZZ75D |
| Manufacturer | China axle | |
| Max. load of front axle | 22.5 ton | |
| Max. load of rear axle | 18.5 ton | |
| Transmission | Gearbox | Mechanically Operated Hydraulic Synchrinized Shift |
| Model | ZL15 | |
| Gears | 2 forward and 2 reverse gears | |
| Hydraulic torque converter | YJ290 | |
| Inlet pressure | 0.4-0.65Mpa | |
| Outlet pressure | 1.5-1.8Mpa | |
| Cooling mode | oil-cooling presssure circulation | |
| Pump delivery | 40ml/r | |
| Wheel | Front wheel size | 14-17.5 |
| Rear wheel size | 19.5L-24 | |
| Front tire pressure | 0.4Mpa | |
| Rear tire pressure | 0.35Mpa | |
| Travel speed | 24Km/h | |
| Brake system | Service brake | Air over oil caliper, external, self-regulation, self-balance |
| Parking brake | Manual brake | |
| System pressure | Loading hydraulic system | 19Mpa |
| Digging hydraulic system | 19Mpa | |
| Steering hydraulic system | 14Mpa |
